How to create and edit a MyHub

Build custom dashboards by arranging charts, tables, and metrics in one view.

MyHub lets you design your own one-page dashboard by combining tiles from across SystemView. You can mix and match summaries, charts, tables, and metrics, then arrange them however you like. For an overview, see 🔗What is MyHub?

📌Want a quick demo? Click here to jump to the interactive click through guide.

In this article:

Locating MyHub

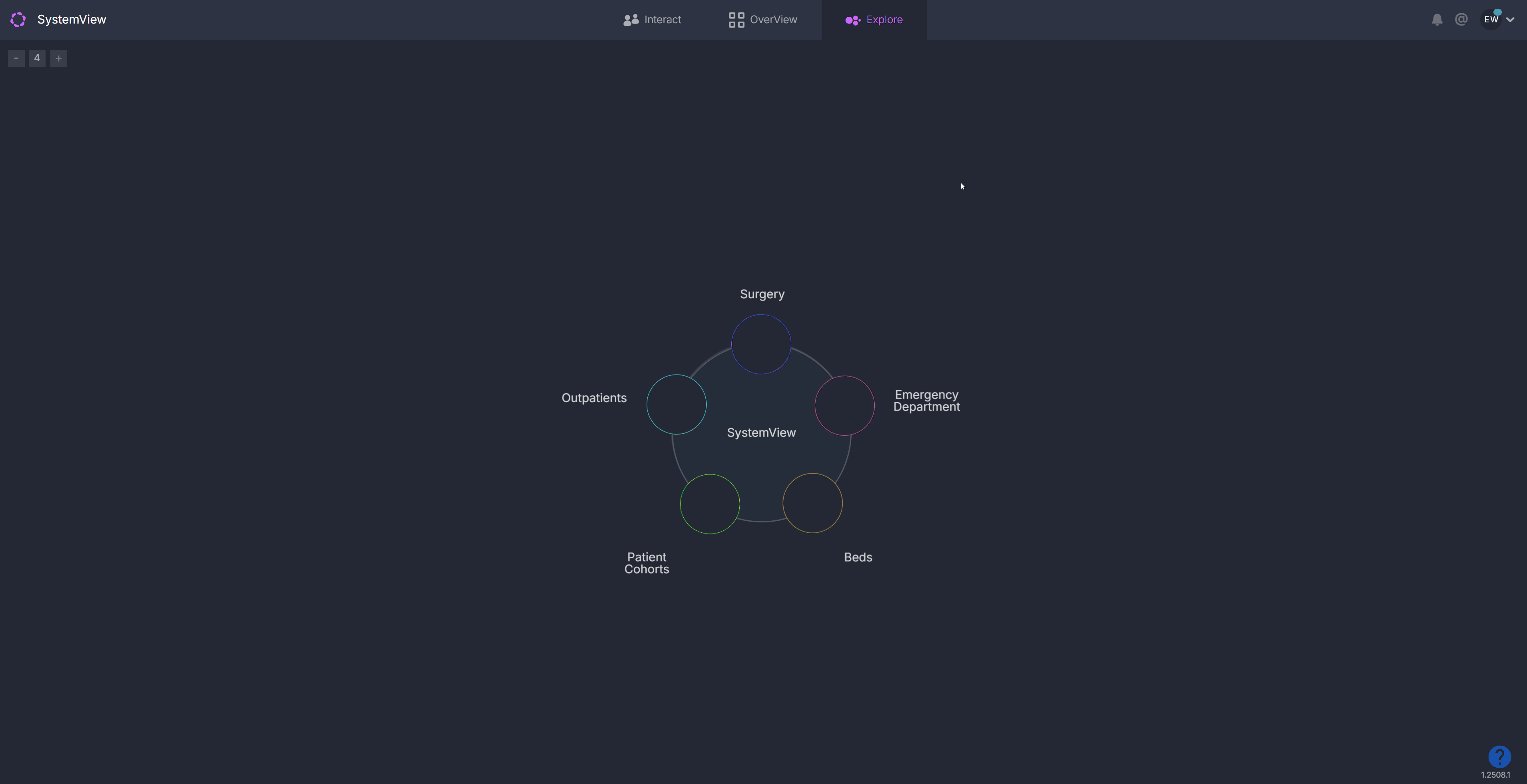

Open Interact and select MyHub. If you’ve created Hub Pages before, one will open automatically. Use the central dropdown to switch between different Hub Pages.

msedge_PsCOEOVTzV

💡 Hub Pages that have been shared with you from your colleagues will also appear in MyHub. Use the central dropdown and look for Hub Pages which end with (created by).

Creating a Hub Page

  1. In Explore, find a chart, table, or metric you want to include.

  2. Activate-2Click the Activate, button in the top-right corner of the tile.

  3. In the activated view, select Hub Pages from the top-right corner.click Hub Pages

  4. Click the New Hub Page button.

    New Hub Page

  5. Type a title for your Hub Page, and click Create.

    Create Hub Page

  6. Click the + button next to your hub page to add the current tile.

    Click add to hub

  7. To keep building out your hub page, repeat the steps above but skip creating a new hub. Just add more tiles to your existing page.

Arranging and Customising a Hub Page

💡 Tiles are stacked together in the top-left corner when first added to a Hub Page.

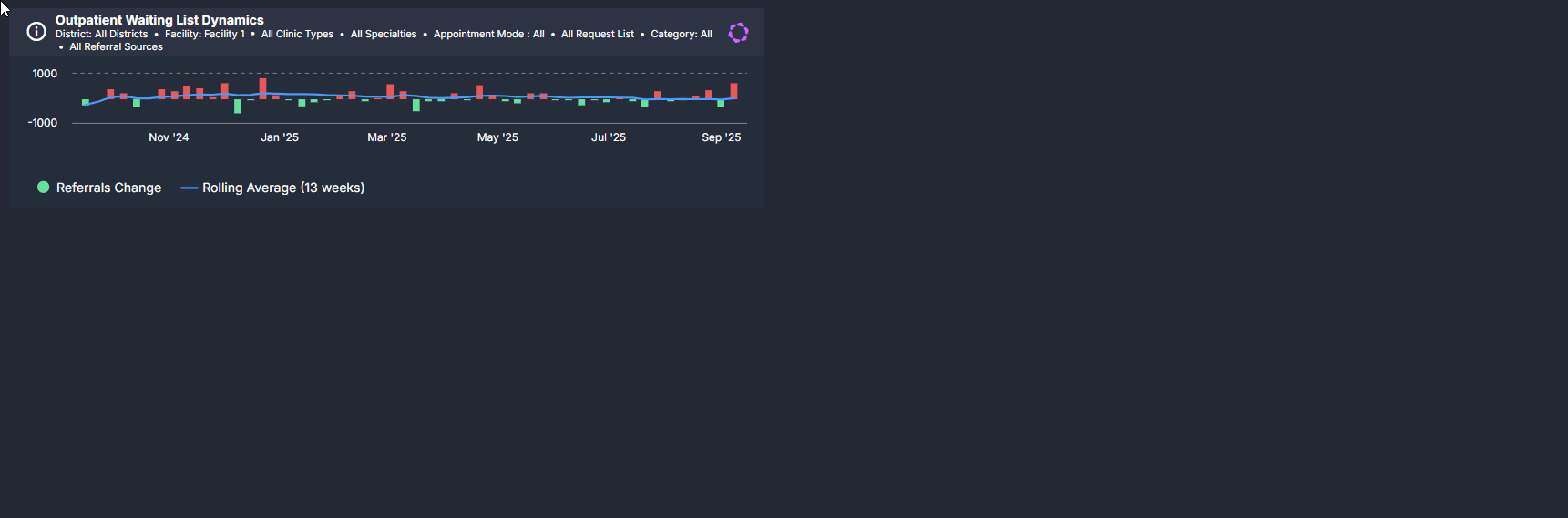

  • Click and drag tiles out of the top-left stack to arrange them across the page.msedge_xjGKa4gmWh

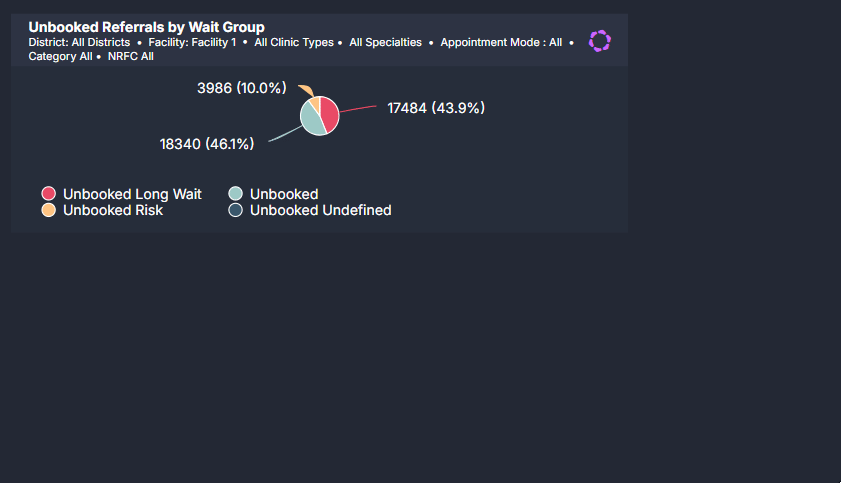

  • Resize a tile by hovering over its edge or corner.msedge_cfOPTczTBf

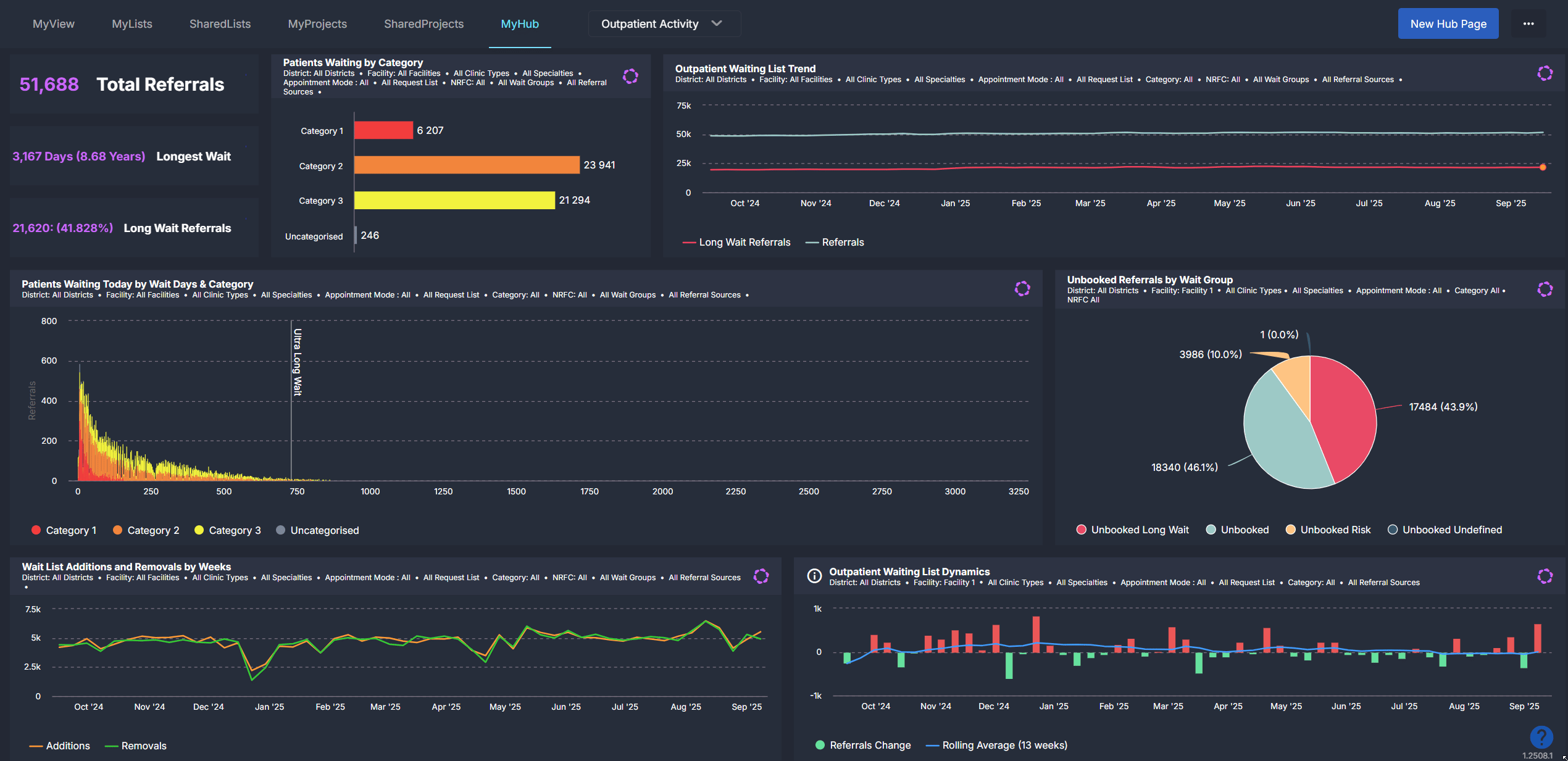

  • Remove a tile by activating it, selecting Hub Pages, and select the - button next to the Hub Page you want to remove it from.msedge_AT8y7fCABn

Managing Hub Pages

  • Select the ellipsis (…) menu in the top-right corner to Update the hub page title, Share with your colleagues in SystemView or Delete the hub page. See 🔗How to share a MyHub.myhub eplisis menu

  • Use the dropdown search feature to quickly locate a hub page by name.Searh Hub Pages

🖱️Interactive Guide

Follow the interactive guide below to learn how to create and design Hub Pages in SystemView.
